Electric Transfer Cart
Cable Rail Transfer Cart
If you want buy this product,You can contact us via the contact details below

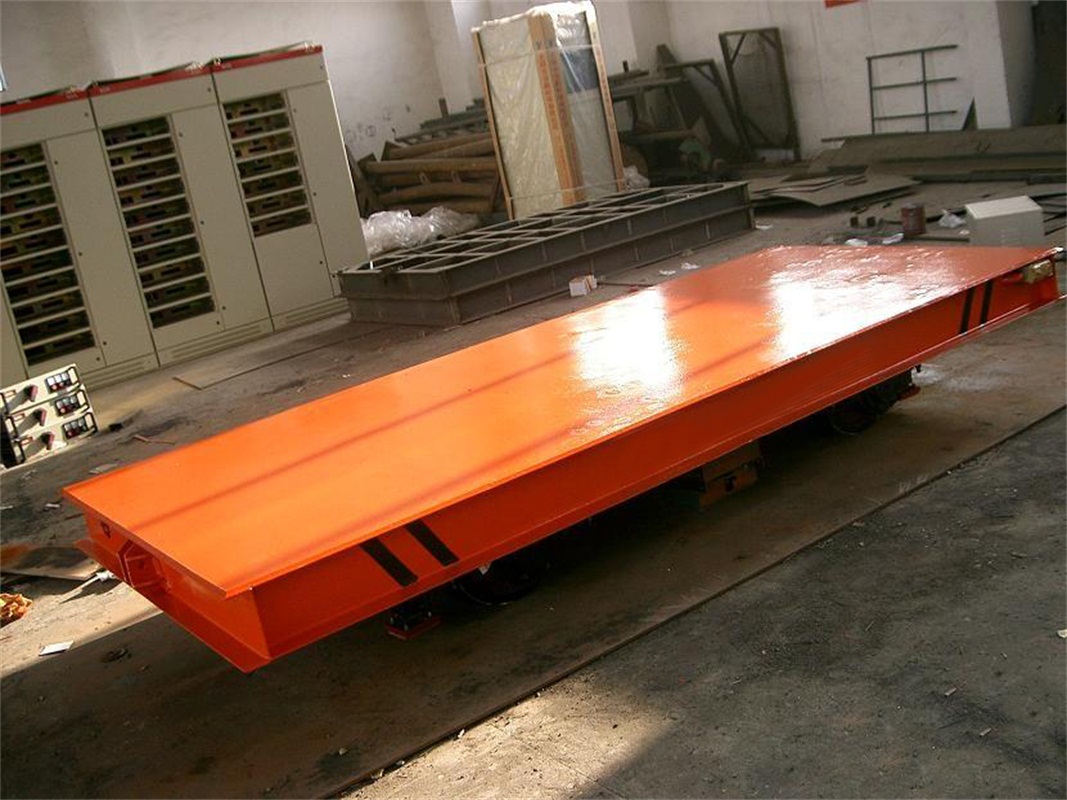

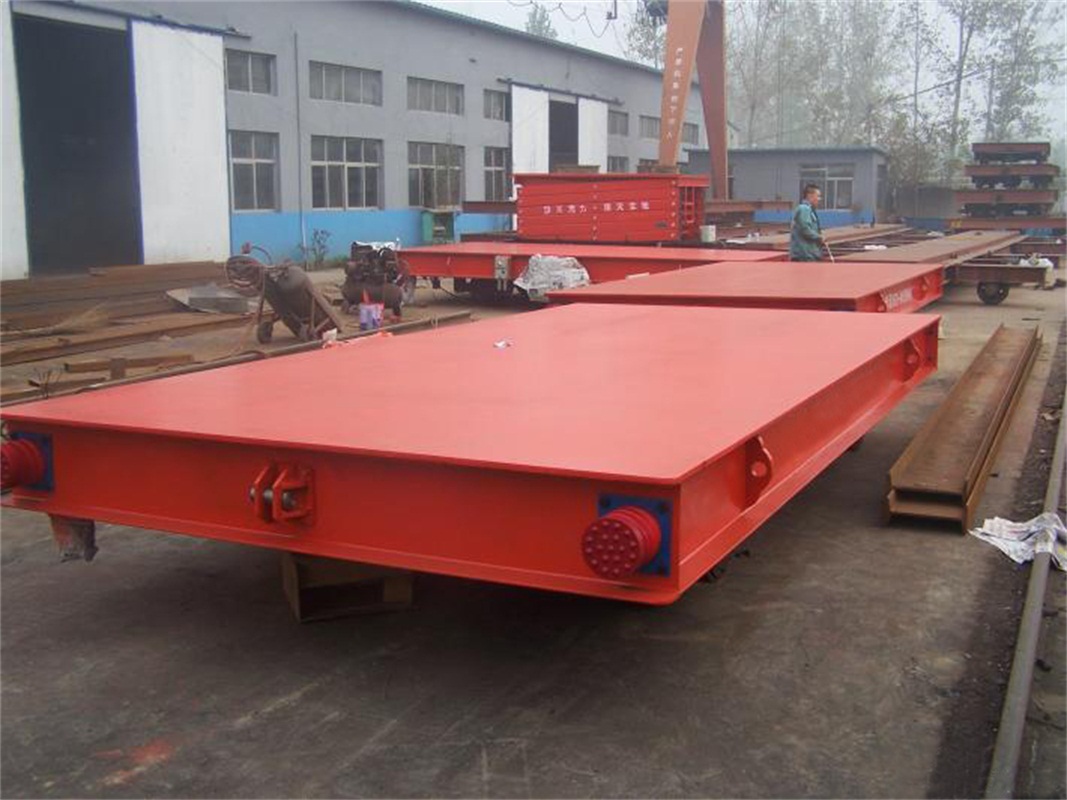

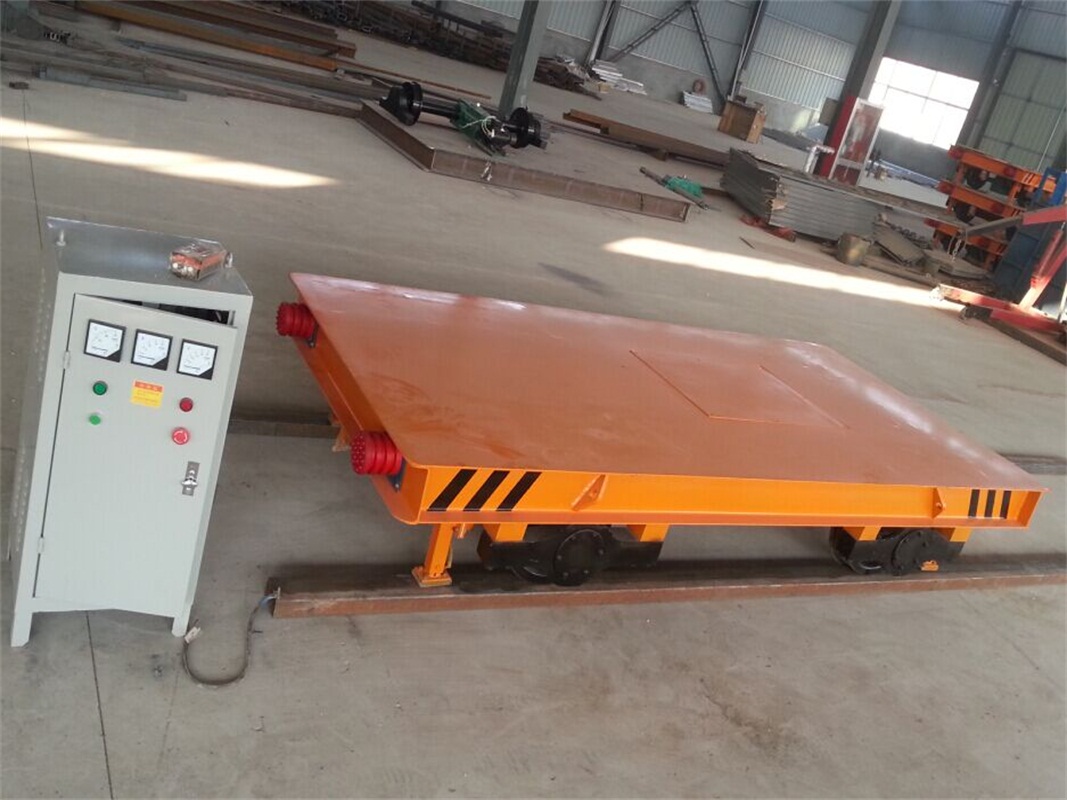

The KPJ rail transfer cart is welded by high quality steel, with the assistant of running mechanism, gears, AC motor, cable drum, the cart will function under the control system. The KPJ rail transfer cart is powered by cable drum supply electricity. The end of electric cable is connected to the electric source, the other end is connected to the reel of the railway track for supplying electric to trolley.
Application

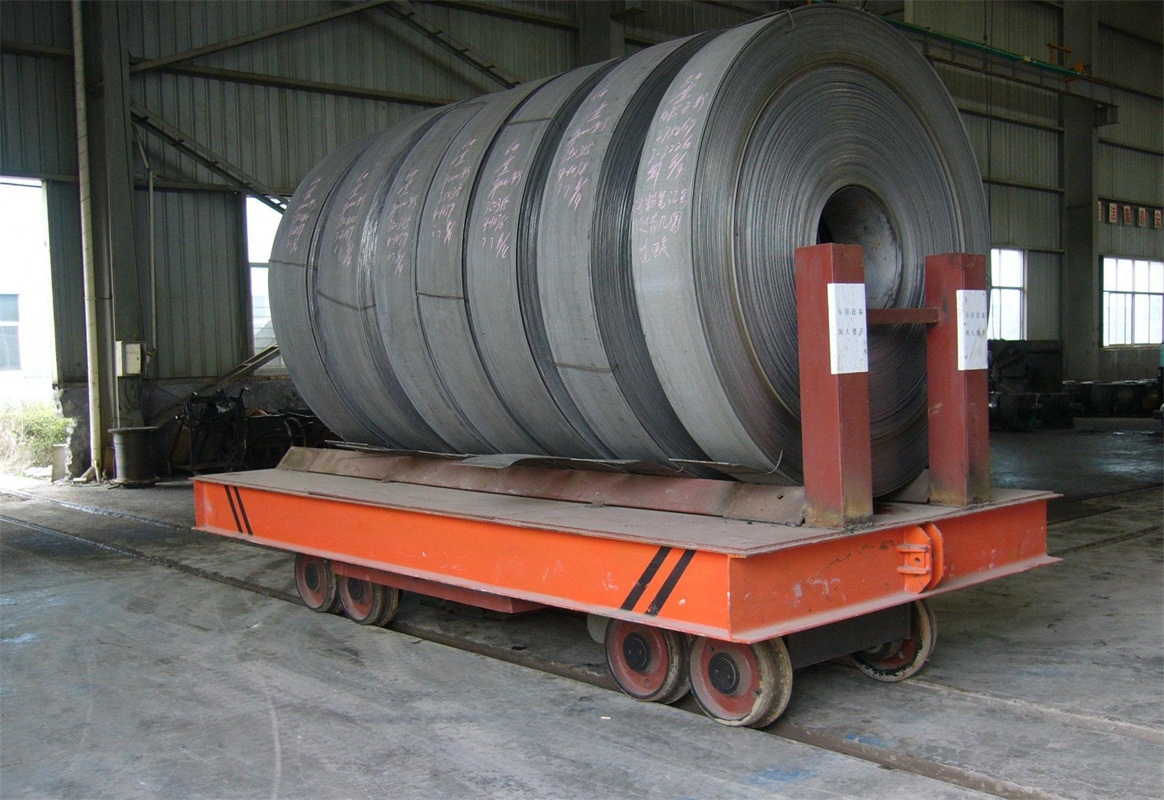

The KPJ transfer cart machine is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc, wide usage range of material, heavy duty, high quality.
Transfer carts are used to carry loads along assembly lines; transfer material from one work station to another; store and transport an entire shift worth of production. They can even be used as a stable yet movable machine base.
It's ideal equipment for lifting goods, raising labor efficiency, improving working conditions.
Advantage
The series transfer cart can be suitable to be used in the bad environment, such as, high-temperature and anti-explosion condition. Compared with the KPX series, the using is not limited; Compared with KPD series, it is not so strict limitation for the railway construction. The load capacity is not limited and if the running distance is more than 50m, a cable arranger should be installed to arrange the cables, the running distance of KPJ series can reach to 200m.
Feature
* Anti-high temperature,Anti-high explosion

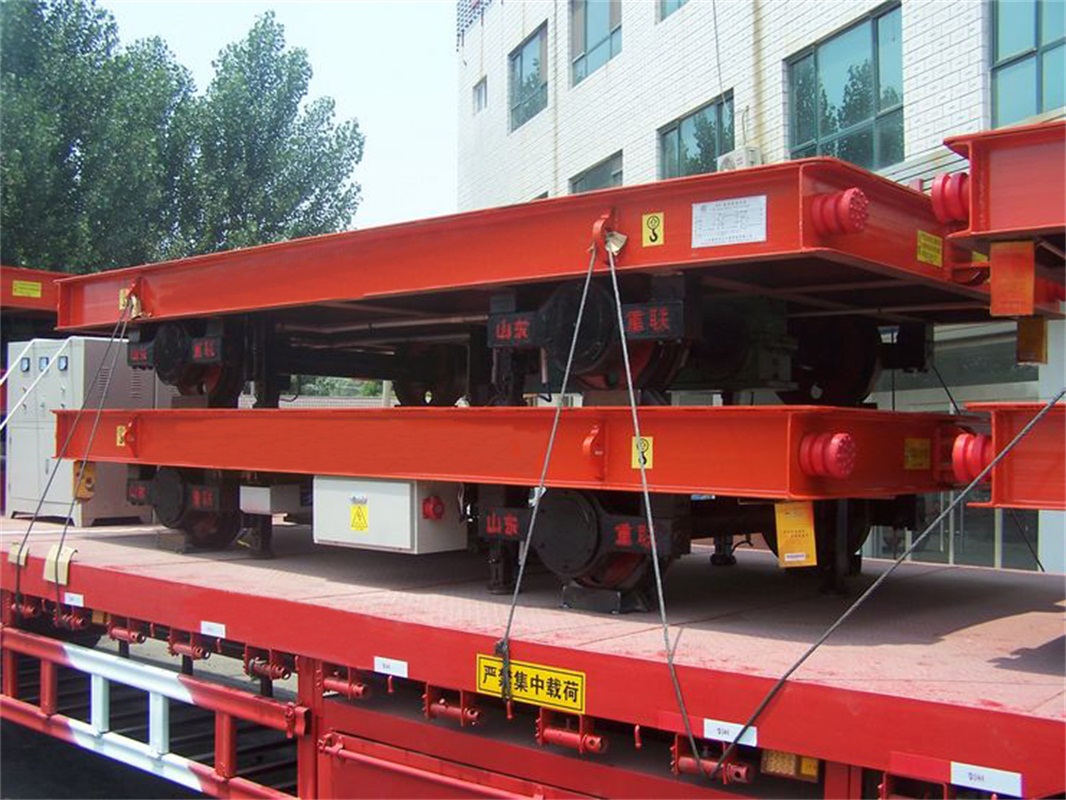

* With lifting holes, convenient to shipment
* Stable start, big starting power, long lifetime
* Can run on the C-form track or S-form track
* Running distance is unlimited
* Safe and convenient operation
* High using frequency
Technical parameter
| Model | KPJ-2t | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-63T | KPJ-150T | |
|---|---|---|---|---|---|---|---|---|
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size (mm) | L | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| W | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| H | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail inner gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel diameter (mm) | 270 | 300 | 350 | 400 | 500 | 600 | 600 | |
| Wheel quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor power (kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Max. Wheel load (KN) | 14.4 | 42.6 | 77.7 | 110 | 174 | 221 | 265 | |
| Weight (kg) | 2800 | 4200 | 5900 | 6800 | 8000 | 10800 | 26800 | |
| Recommended rail model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
