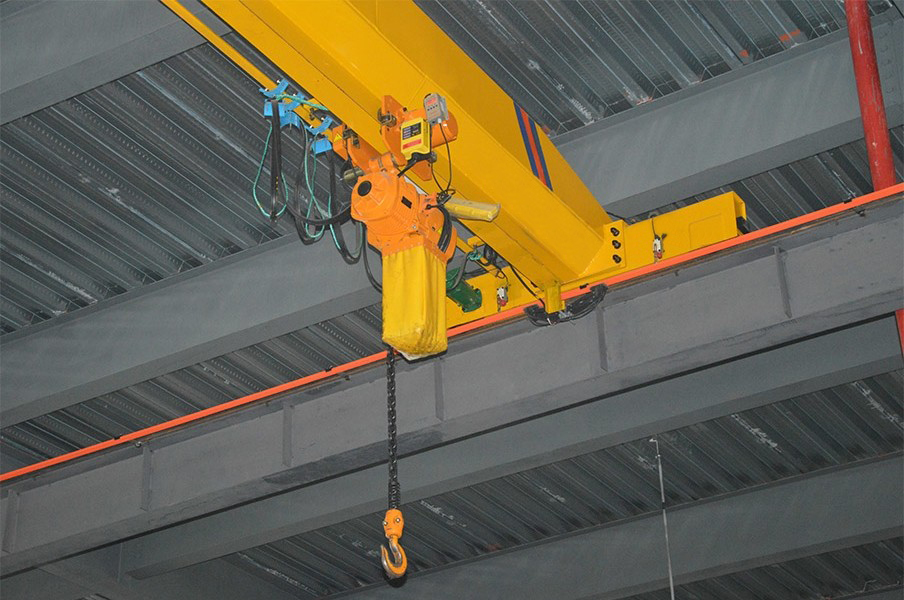

Electric Chain Hoist Detail Description
time:Oct 19,2016
1. Motor cover
It made of high strength and light aluminum alloy but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
2. Inverse phase sequence protecting device
It is the special electrical installation, which control the circuit not to work in case of wiring error in the power supply.
3. Limit switch
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
4. 24V/36V device
It is used to prohibit the emergencies from occurring in case of the leakage in the switch.
5. Side magnetic braking device
This device shall realize the instant brake in case of the power dump.
6. Chain bag
It shall be light, handsome and durable.
7. Chain
The chain shall be adopted the imported FEC80 ultra heat-treatable steel alloy.
8. ISO: M5/FEM
2AM, insulation grade: F, protection class(hoist and push button): IP65
