Crane Steel Surface Primer Painting
time:Oct 19,2016

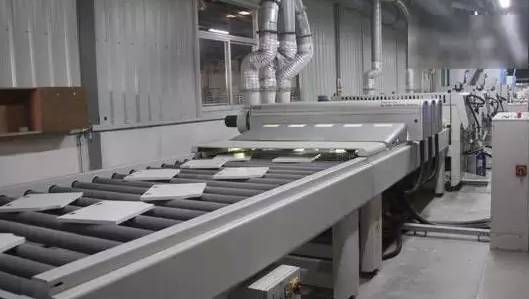

Before cutting, the steel plate will be adopt shot blasting, after removing the rust, it is very important to paint anti-corrosive primer at once, or the steel plate will rust again. And, according to the use environment, the primers are also different, and according to different finish coat, should use a different primer.
1. General environment
The primer adopt Iron red alkyd primer C06-1, C.6-11, Alkyd anti - rust paint C53-1, Iron oxide red epoxy ester primer H06-2
2. Coastal areas and strong corrosive environment
2. Coastal areas and strong corrosive environment
The Primer adopt Epoxy zinc - rich primer H06 - 4, Iron oxide red epoxy ester primer H06-2, Red epoxy epoxy ester antirust paint, Cloud iron epoxy antirust paint H53-1, Zinc yellow, Iron red over vinyl chloride primer G06-4
3. High temperature environment
300 ℃: W61-42 silicone heat - resistant paint
300-350 ℃: W61-32 aluminum powder heat-resistant silicone paint
300-400 ℃: W61-37 silicone heat-resistant paint
400 ° C: Inorganic zinc silicate primer
4. Strong corrosive environment
Long-term working in by the tide, wet, hot and humid conditions
3. High temperature environment
300 ℃: W61-42 silicone heat - resistant paint
300-350 ℃: W61-32 aluminum powder heat-resistant silicone paint
300-400 ℃: W61-37 silicone heat-resistant paint
400 ° C: Inorganic zinc silicate primer
4. Strong corrosive environment
Long-term working in by the tide, wet, hot and humid conditions
The Primer adopt Epoxy zinc-rich primer H06-4, Asphalt paint
5. Oil environment
The oil container or the parts contact oil
The promer adopt Iron oxide epoxy anticorrosive paint, C06-1 iron red alkyd primer, C06-11 iron red alkyd primer, C06-4 iron red over vinyl chloride primer, Polyurethane paint
