Double beam overhead traveling crane structure
time:Oct 19,2016
Double beam overhead traveling crane is designed and developed by current world advanced level. Its technology is advanced, equipped with many advantages, such as: Strong rigidity, light dead weight, outstanding structure design, etc, could effectively save your factory space and investment cost, its particular and special travelling structure is your best choice.

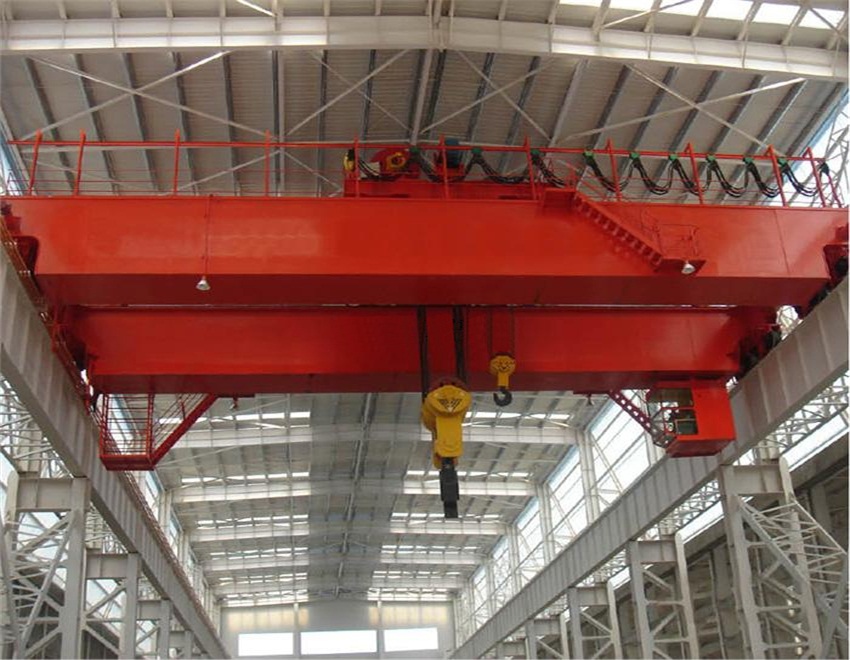

Double beam overhead traveling crane is composed of bridge frame, trolley, crane traveling mechanism and electric equipment.
1. The bridge frame is welded girder construction, lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway!
2. Trolley travel adopts separate driving move on specialized laying tracks, it is equipped with two hoisting mechanisms. Both of the main and aux.
3. Hoisting mechanisms adopt internationally renowned brand, consists of motor, reducer, brake, wire rope winding system, objects-catching equipment and protective devices, etc.
4. The gearbox is mounted inside of the drum which has the advantages such as less occupying space, impact structure, easy to maintenance, less weight, high reliability, stable transmission, big outlet torque, lower noise, free of maintenance etc.
5. The operation of Double beam overhead traveling crane is completed in driver's cabin, which has open type and closed type and can be installed on left or right side according to practical situation. The direction of entering the gate has two forms, sideway and ends, in order to satisfy the user's choice under different conditions.
