Hydraulic grab overhead crane feature
time:Oct 19,2016

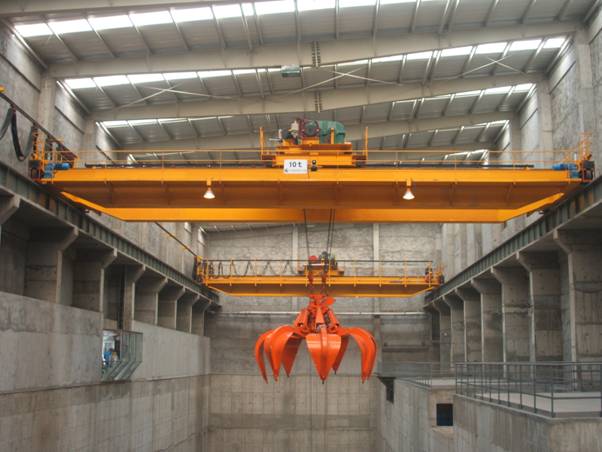

Hydraulic grab overhead crane are used for carrying the ore, limestone, coal, sand and other granular materials in the warehouse and workshop of metallurgical, cement, chemical and other plants, Composed of box type crane bridges, crane travel mechanism, electrical device and grab.
Hydraulic grab overhead crane fetching device is a double cylinder 4-rope grab bucket that is simple, reliable and can open and close at any height, can be used for both indoor and outdoor operations, waterproof cloth is needed in outdoor operation.
Hydraulic grab overhead crane feature
1. Hoisting duty includes the dead weight of the grab
2. Work class: A6
3. Hoisting capacities: 5 to 20m3
4. Span: 10.5 to 31.5m
5. All mechanisms are controlled in the driver's room, room has close and open types
6. Wound rotor motor is used on each mechanism, changed speed by resistance
7. Working ambient temperatures: -20 to 45°C
8. It's not suitable for lifting blazing and melting metal or toxicant as well as explosion-proof or insulating working conditions
9. Two kinds of power conduction: angle iron and safe slippery touch line
10. According to demand, it can be matched sugar cane grab (stainless steel), trash grab and lumber grab and more
