Wall Mounted Jib Crane
If you want buy this product,You can contact us via the contact details below

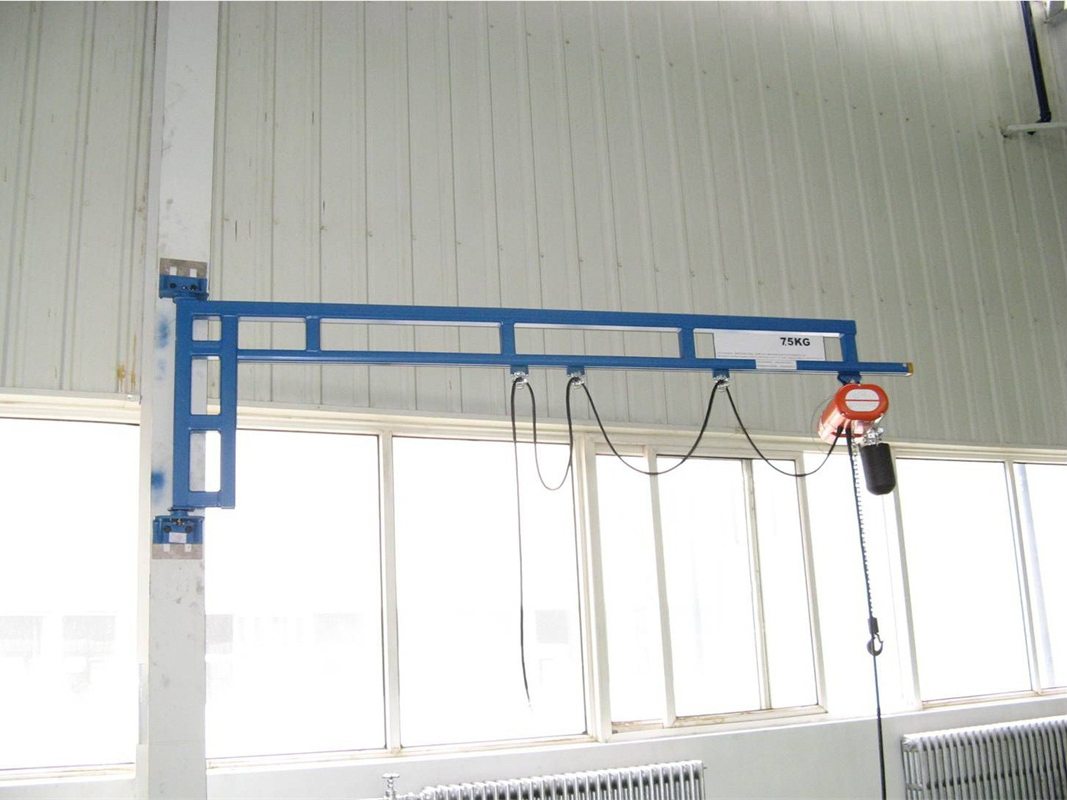

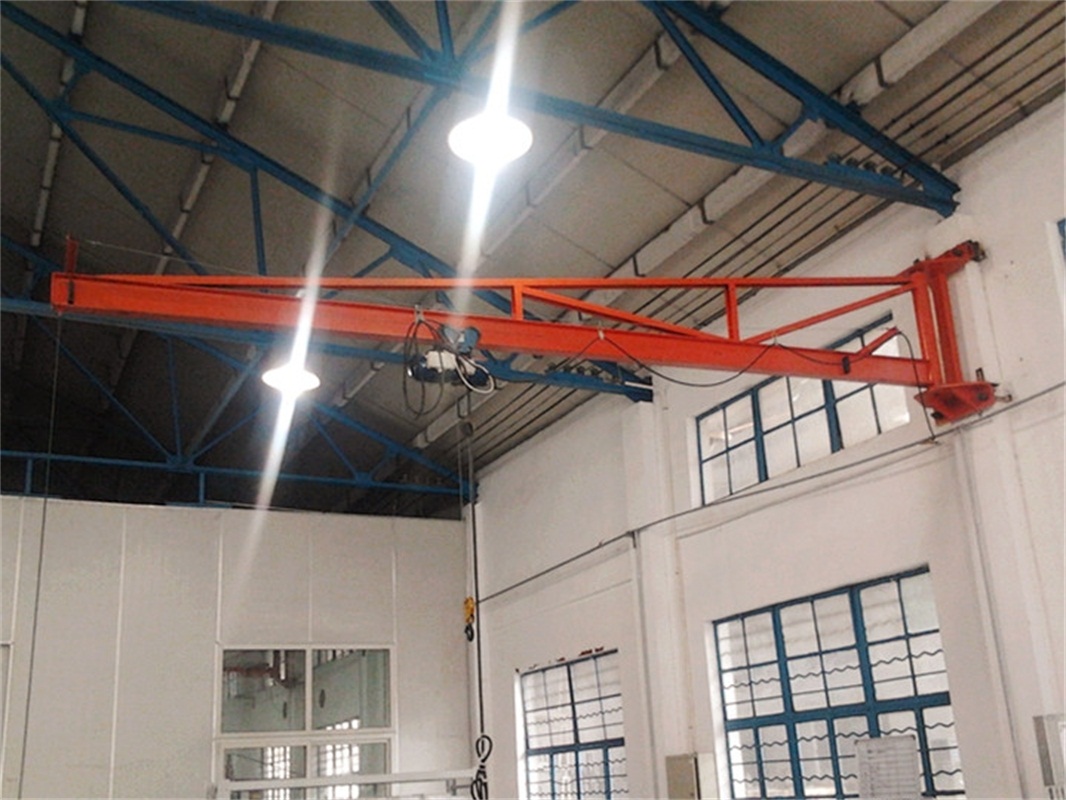

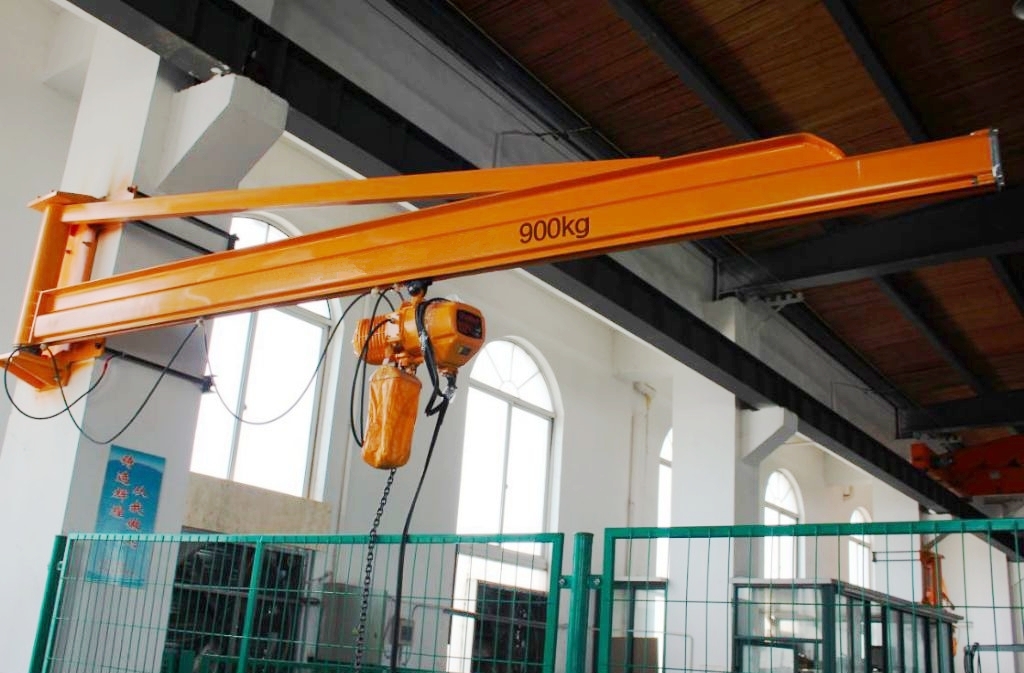

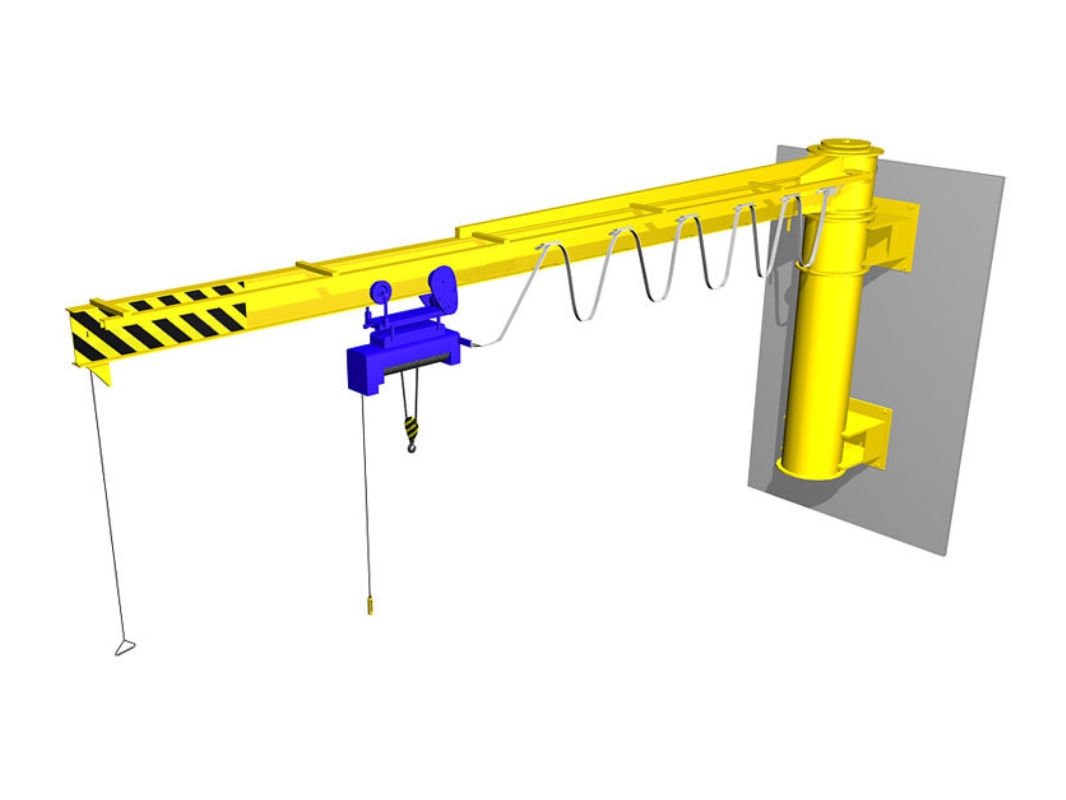

Wall mounted jib crane is a kind of lifting equipment composed of wall crane and chain hoist or electric hoist, is a new generation of hoisting equipment developed to meet the requirement of modernized production in side workshop or house. It is wall mounted type which is suitable for short distance, frequent and intensive hoisting operations. It is 180 degree operation with remote control device, so workman can operate from a long distance, it is a safe and ideal modern rigger materials and equipment.
1.Loading capacity: 0.5~2ton
2.Lifting height:3~20m
3.Jib length:2~10m
4.Slewing degree:0~180°
5.Power supply:220~440V,50/60HZ,three phase or customized design
Jib crane Feature
Simple structure, Easy and reliable operate, convenient maintenance
Turning agile, high efficiency, energy frugal, labor saving, wide working conditions
Simple and convenient to install, can be installed on the wall directly, also can be fixed on machine equipment so that it can save workshop space.
Suitable for machining workshop, assembling workshop, foundry, heat treatment plant, transportation, loading and unloading, spare parts to flip homework.
Technical Parameter
| Model | Rated lifting (t) | Lifting Height (mm) | Min. rotation radius (mm) | Max. rotation radius (mm) | Overall height (mm) |
|---|---|---|---|---|---|
| BXS0.25 | 0.25 | 3,200 | 250 | 3000 | 800 |
| BXS0.5 | 0.5 | ||||
| BXD1 | 1 | 3,400 | 300 | 950 | |
| BXD2 | 2 | 3,500 | 450 | 3,000 | 1,150 |
| BXD3 | 3 | 4,500 | 500 | 4,000 | 1,350 |
| BXD5 | 5 | 4,700 | 550 | 4,000 | 1,500 |
