Slow Speed Electric Winch
If you want buy this product,You can contact us via the contact details below
JM electric winch is slow speed heavy duty electric winch, is driven by electric power, the cable drum with ropes complete the traction device for work, which can be vertical inclined pulling heavy objects, can lift heavy weight in the Machinery industry, Construction and Port, it also can be used as traction power in installing of the factories and mines, and it can be used alone, also can combined with other large-scale and complex machine as the production line.

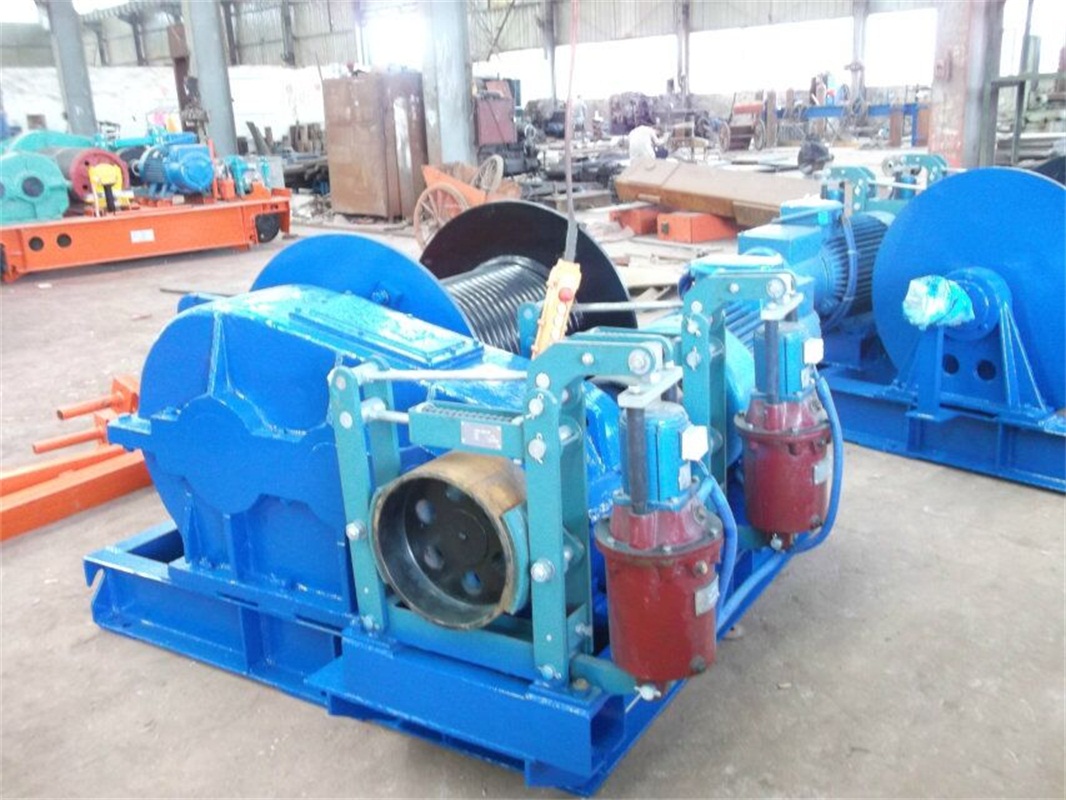

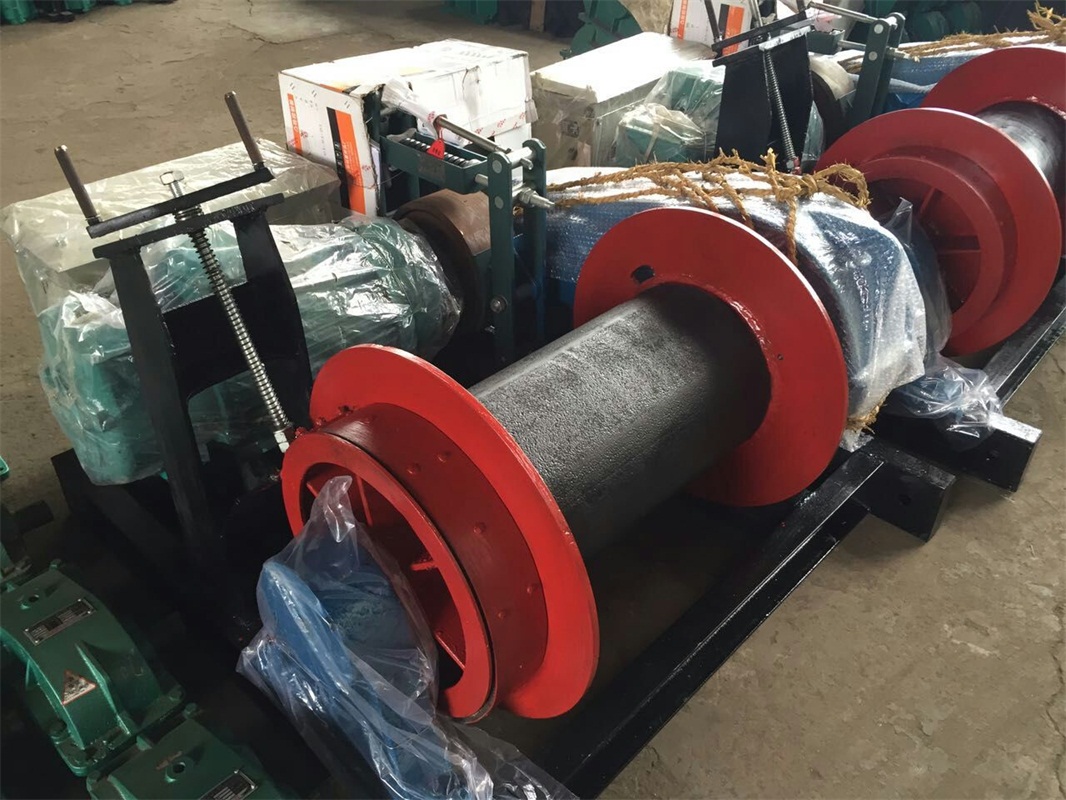

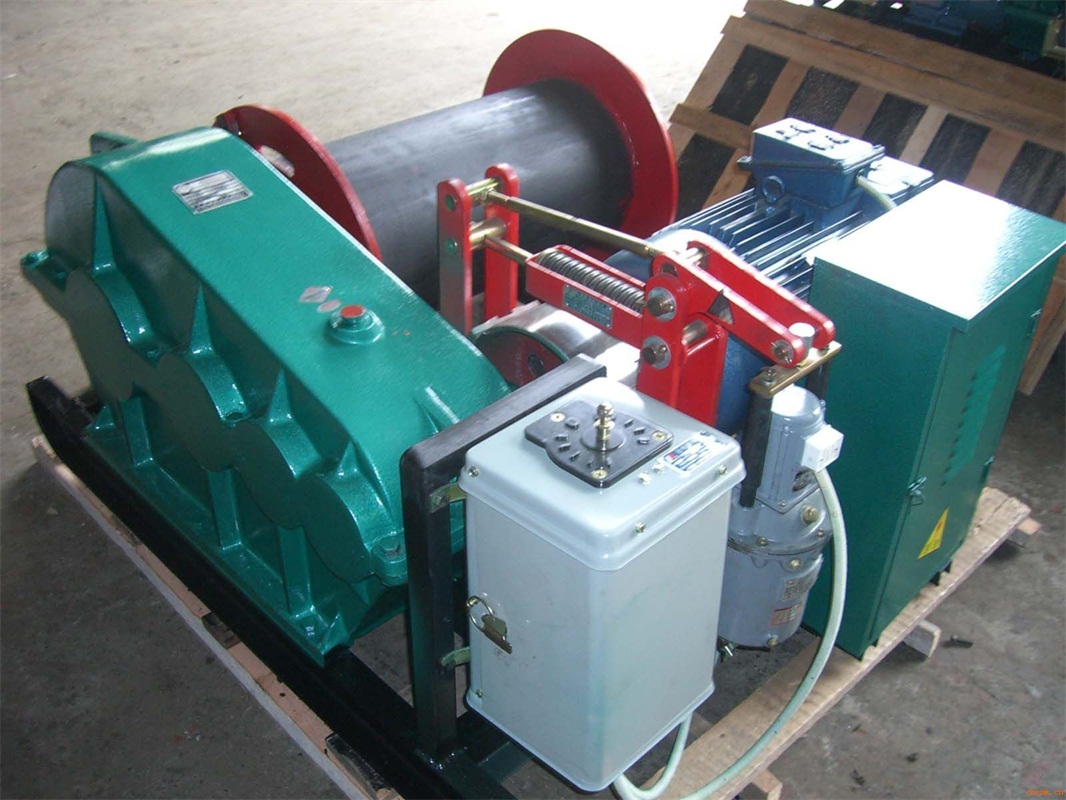

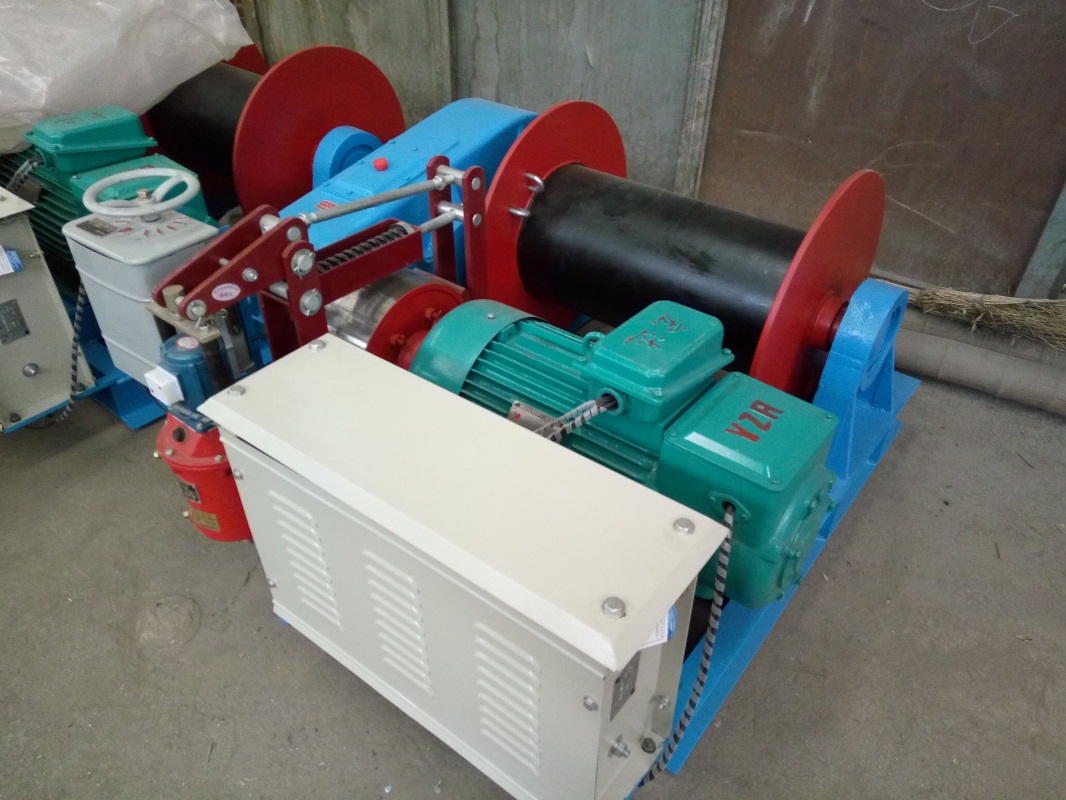

Electric winch compose of electric motor, coupling, brake, gear box,drum and frame, power supply is according to different countries’ situation. The electric winch also can divided into: construction winch, marine winch, mine winch, building winch, cable winch, etc. With different models, speeds and structures, electric winch is widely used, such as construction site, workshop, road construction, bridge construction, factory, mines engineering, harbor, building, etc.
Feature
- High versatility
- Compact structure
- Small volume, lightweight, convenience in using and transferring
- Driving stably, low noise
- With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length
- Adjustable lifting or pulling speed for different usage environment
Techcnial parameter
| Model | Rated load (KN) | Rated speed (m/min) | Rope capacity (M) | Rope diameter (mm) | Motor power (kw) |
|---|---|---|---|---|---|
| JM1 | 10 | 15 | 100 | 9.3 | 3 |
| JM2 | 20 | 16 | 150 | 13 | 7.5 |
| JM3.2 | 32 | 9.5 | 150 | 15.5 | 7.5 |
| JM5 | 50 | 10 | 270 | 21.5 | 11 |
| JM6 | 60 | 9.5 | 270 | 24 | 15 |
| JM8 | 80 | 8 | 250 | 26 | 15 |
| JM10 | 100 | 8 | 170 | 30 | 22 |
| JM16 | 160 | 10 | 500 | 37 | 37 |
| JM20 | 200 | 10 | 600 | 43 | 45 |
| JM25 | 250 | 9 | 700 | 48 | 55 |
| JM32 | 320 | 9 | 700 | 56 | 75 |
| JM50 | 500 | 9 | 800 | 65 | 90 |
| JM65 | 650 | 10.5 | 3600 | 64 | 160 |
