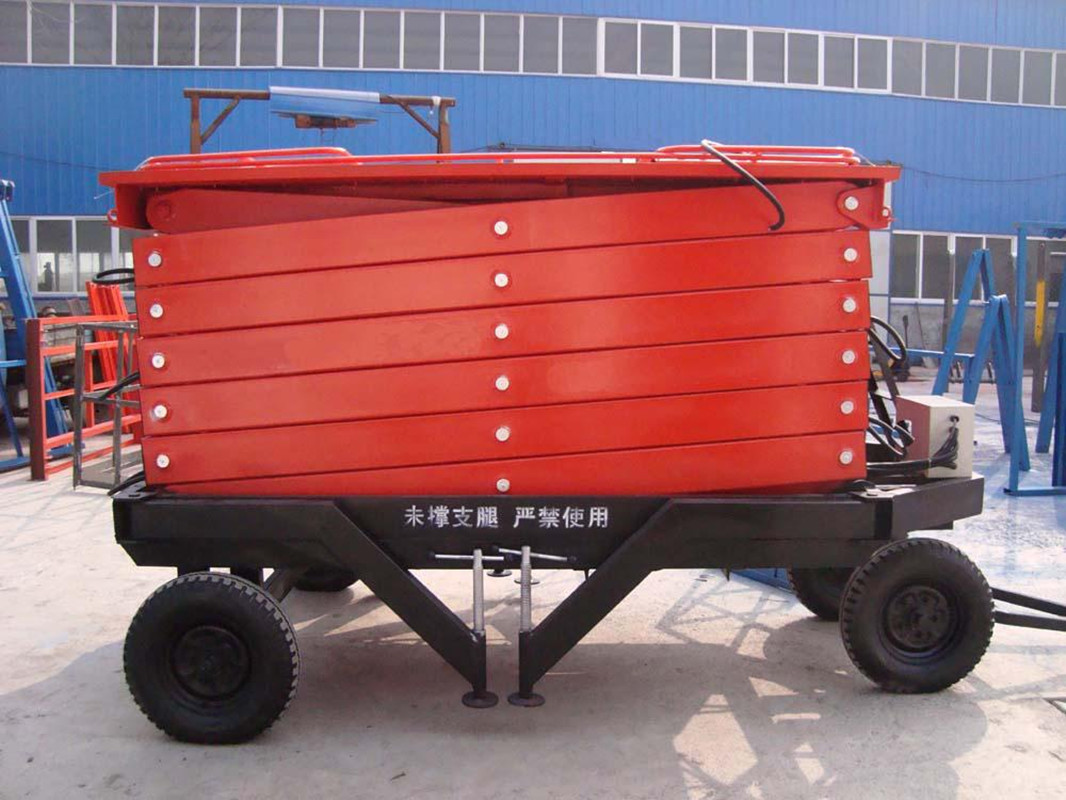

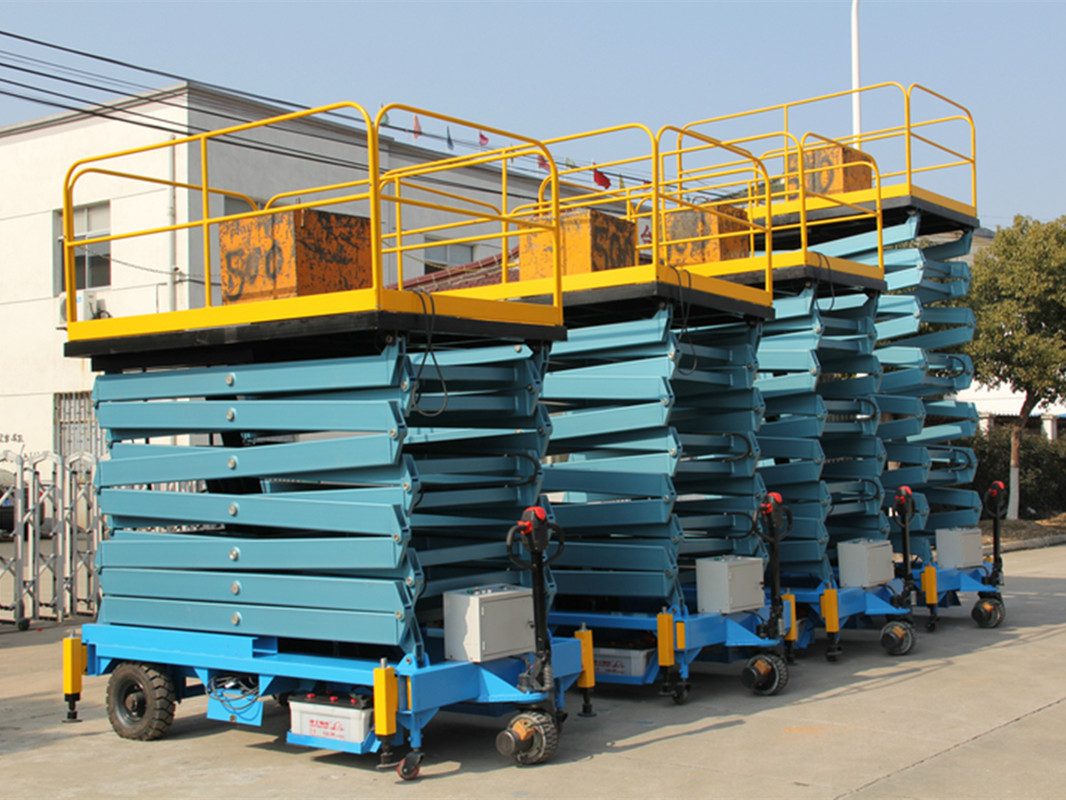

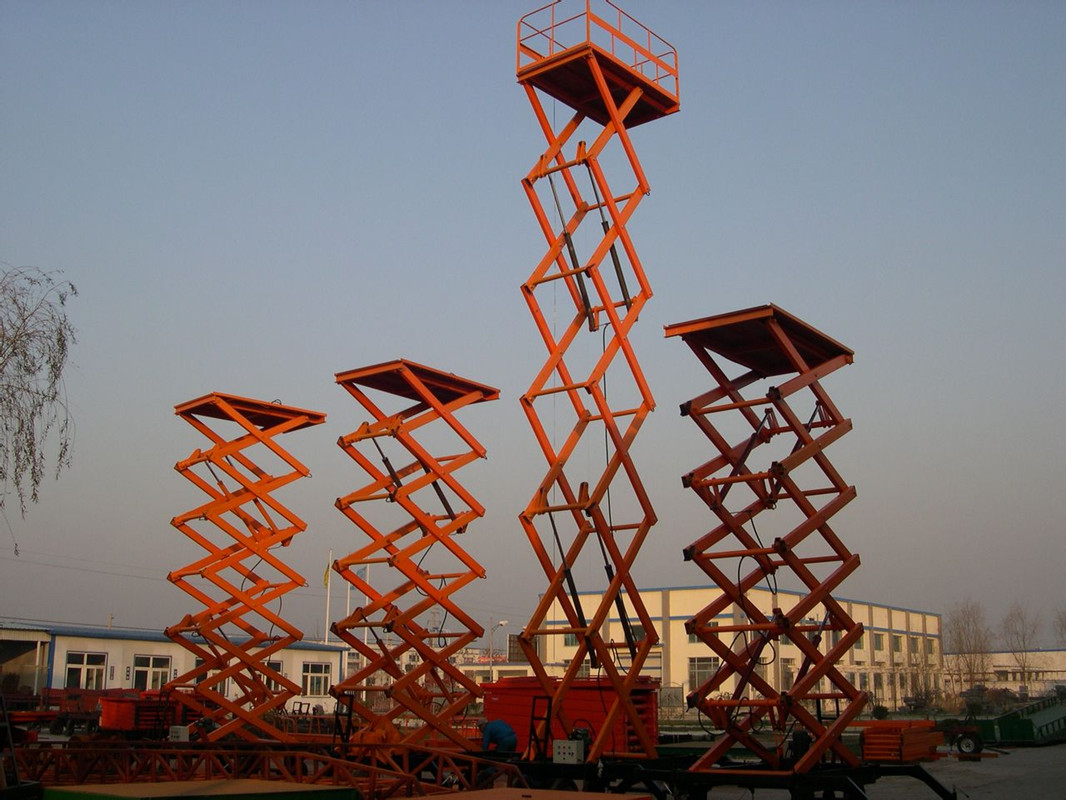

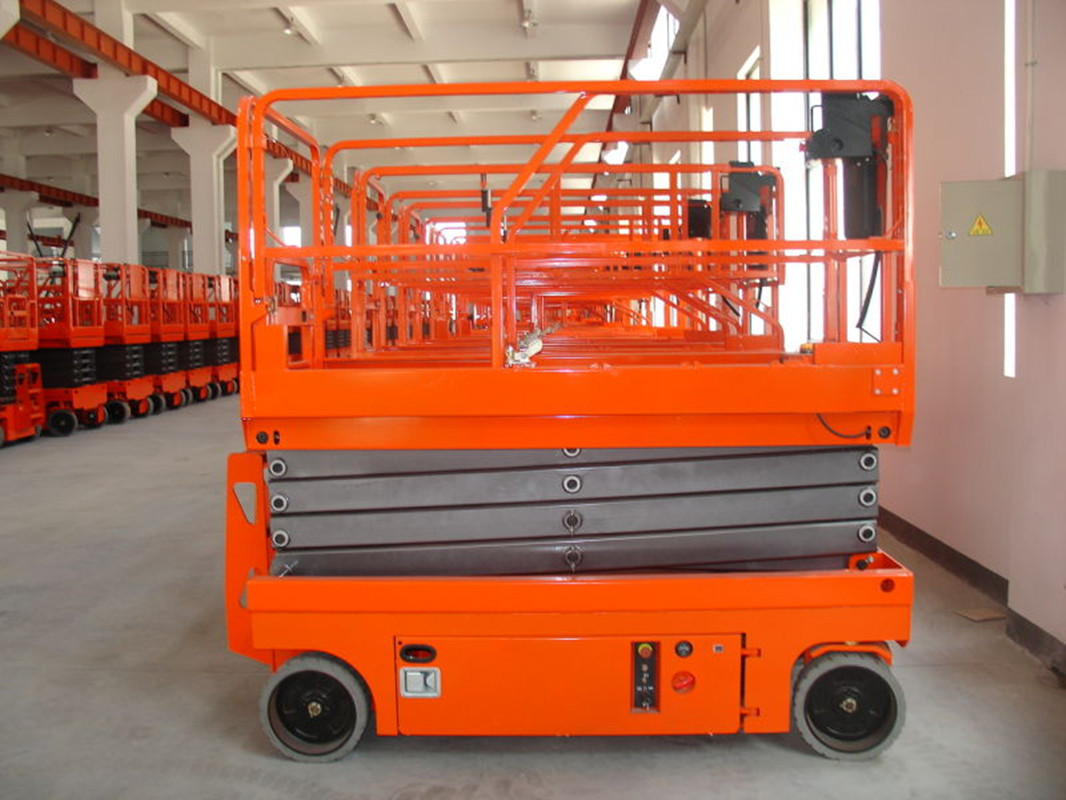

Mobile Scissor Lift
If you want buy this product,You can contact us via the contact details below
Specification description
* Working heights: ranging from 2m to 18 m
* Lifting handle switch: Press control button, "up","down"and"Pause", easy to control the travel, to control the lifting height, and against the over height
* With Ladder: convenient to the people to go on the table
* With Fence: open and close with a little telescopic shaft to prevent the goods or personnel slide
* Tyres: 4 wheels, can be pneumatic rubber tyres, solid rubber tires or polyurethane tires, suitable for different floor and ground, low damage to the floor.
* With Outrigger: Four outrigger legs to promise the safety and steady
* High quality hydraulic oil cylinder
* Power sources: any as your local working sites( 110V,220V,380V,415V )

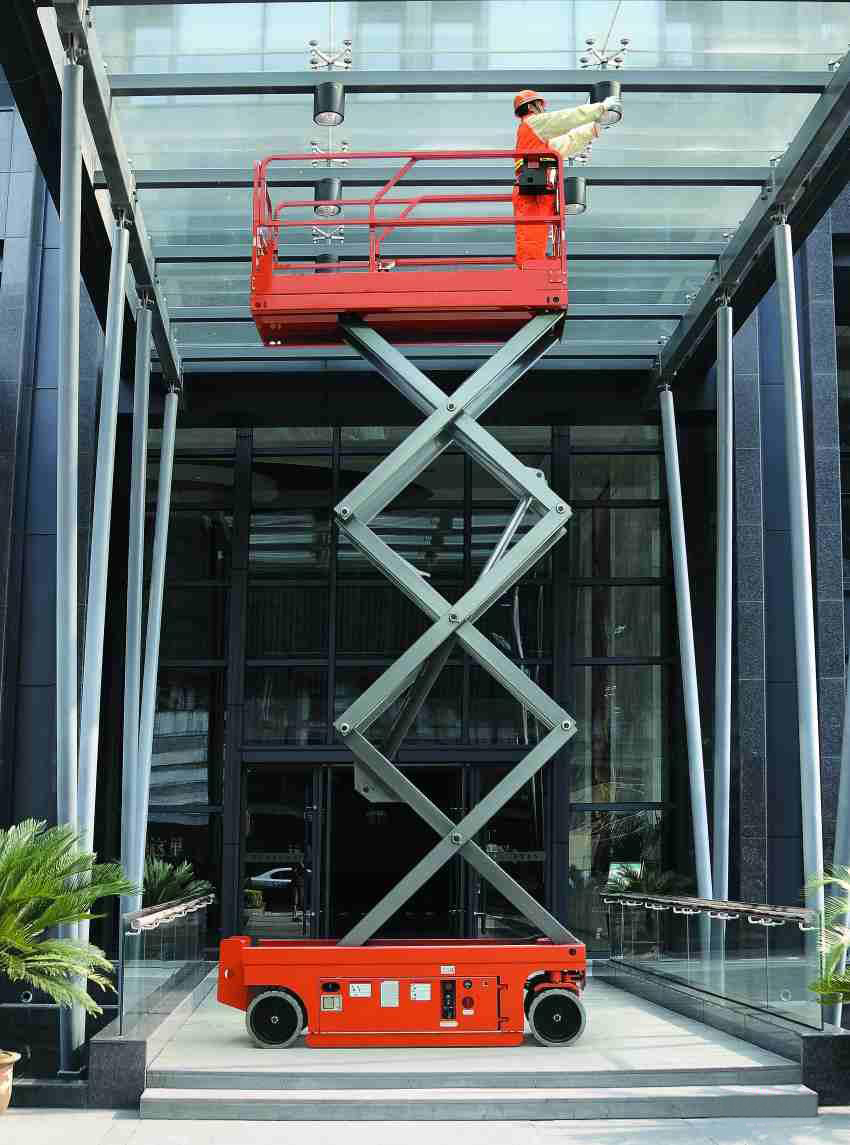

* Widely used in construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline for the equipment installations and maintenance.
Safety Feature
1. Can be used is explosion-proof environment when equip with explosion-proof electric equipment
2. Anti skid plate to prevent slipping, safe when people works on the platform.
3. Hydraulic overload protective, ensure the equipment will not lift goods beyond its rated load capacity
4. Manual emergency valve,it can go down to the nearest floor and open the door when you meet an emergency.
5. The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure, and you can lower the platform with manual dropped valve
6. Spillover valve, it can prevent high pressure when the machine moves up
7. Temperature protection, when the hydraulic oil temperature is substandard, the machine will stop working until the temperature down to the safe.
Techcnical parameter
| Specification |
Height (m) |
Capacity (kg) | Table size (mm) | Overall dimension (mm) |
Power (kw) |
Weight (kg) |
|---|---|---|---|---|---|---|
| SJY0.3-4 | 4 | 300 | 1700*1080 | 1820*1400*1180 | 2.2 | 660 |
| SJY0.3-6 | 6 | 300 | 1700*1080 | 1820*1400*1280 | 2.2 | 750 |
| SJY0.3-8 | 8 | 300 | 1800*1060 | 1900*1380*1460 | 2.2 | 850 |
| SJY0.3-10 | 10 | 300 | 1920*1200 | 2040*1580*1660 | 2.2 | 1300 |
| SJY0.3-12 | 12 | 300 | 2370*1300 | 2510*1630*1980 | 2.2 | 1420 |
| SJY0.3-14 | 14 | 300 | 2650*1300 | 2800*1660*1980 | 2.2 | 1800 |
| SJY0.3-16 | 16 | 300 | 2650*1340 | 2800*1600*2130 | 3 | 2800 |
| SJY1.0-8 | 8 | 1000 | 1940*1300 | 1920*1630*1980 | 2.2 | 1050 |
| SJY1.0-10 | 10 | 1000 | 1920*1300 | 2060*1630*1980 | 2.2 | 1500 |
| SJY1.0-12 | 10 | 1000 | 2400*1340 | 2530*1630*2000 | 3 | 1700 |
