Double Girder Overhead Crane
If you want buy this product,You can contact us via the contact details below

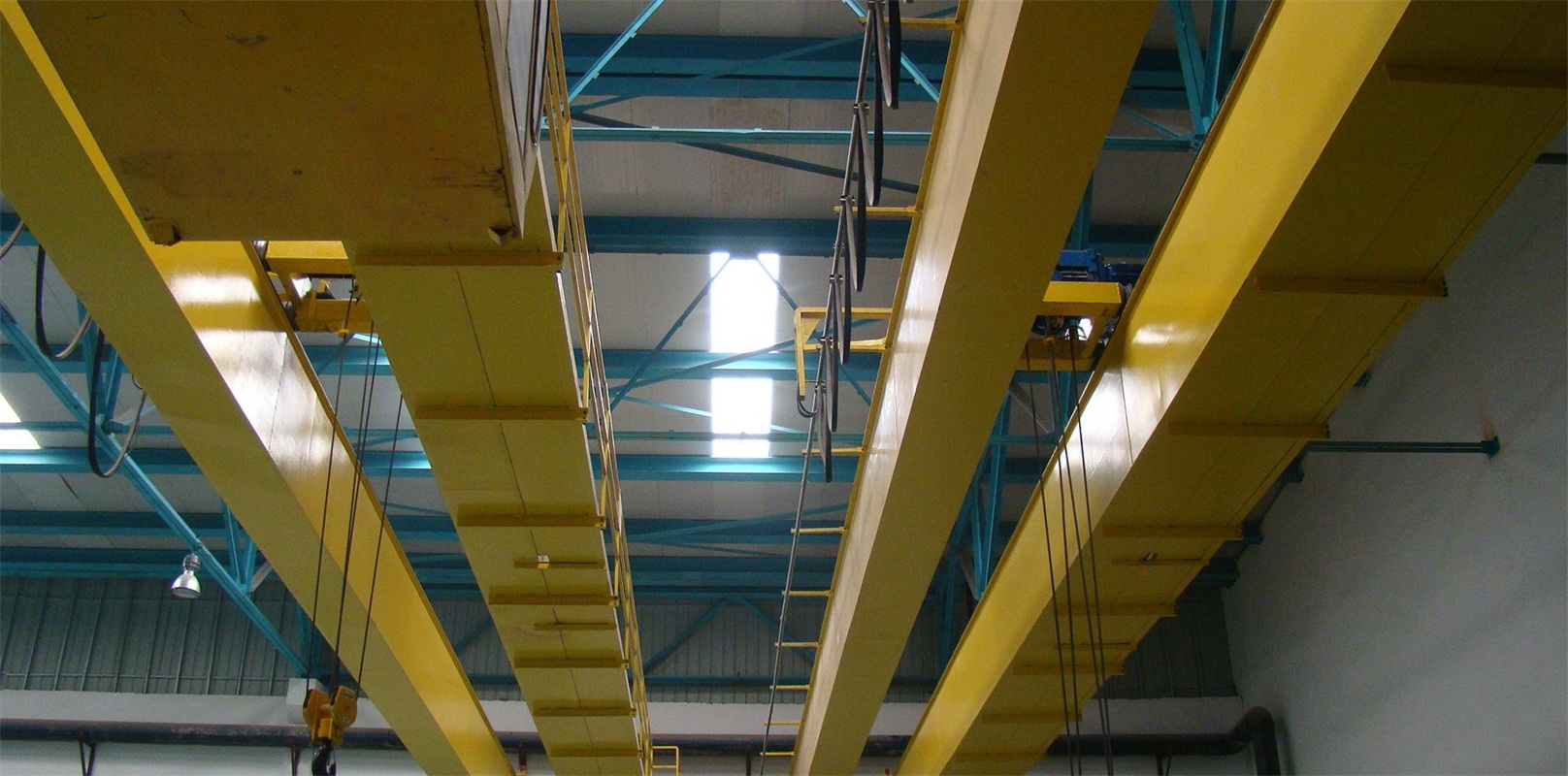

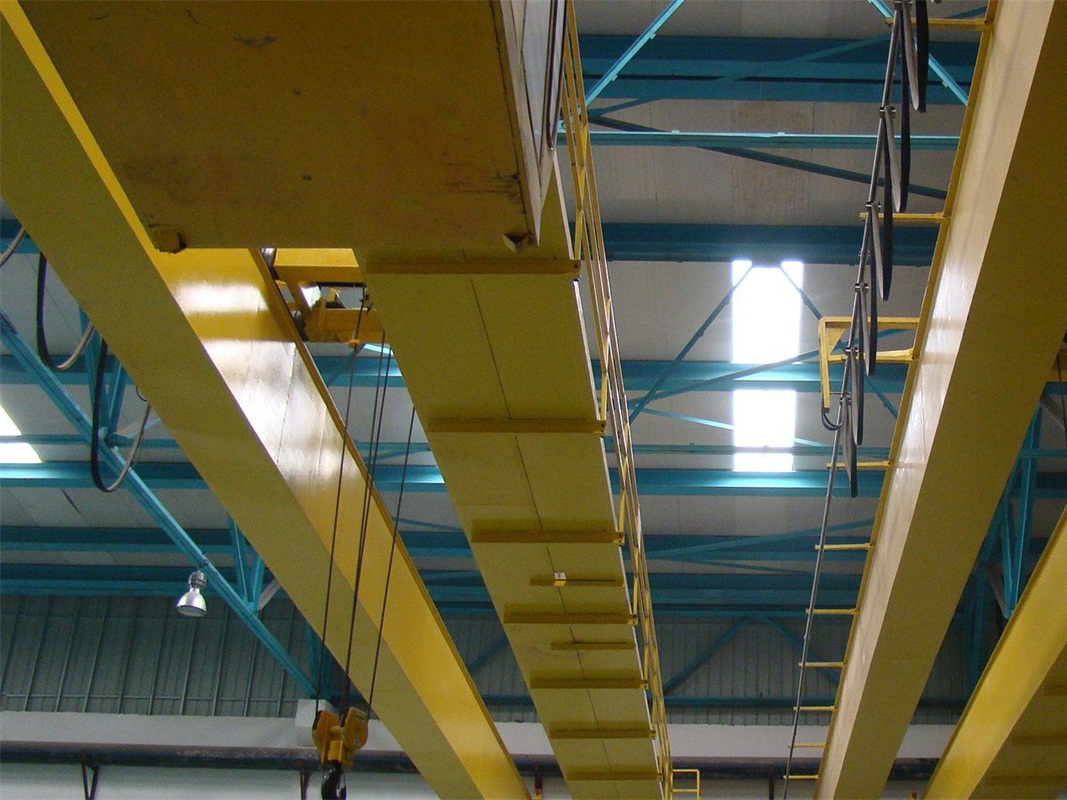

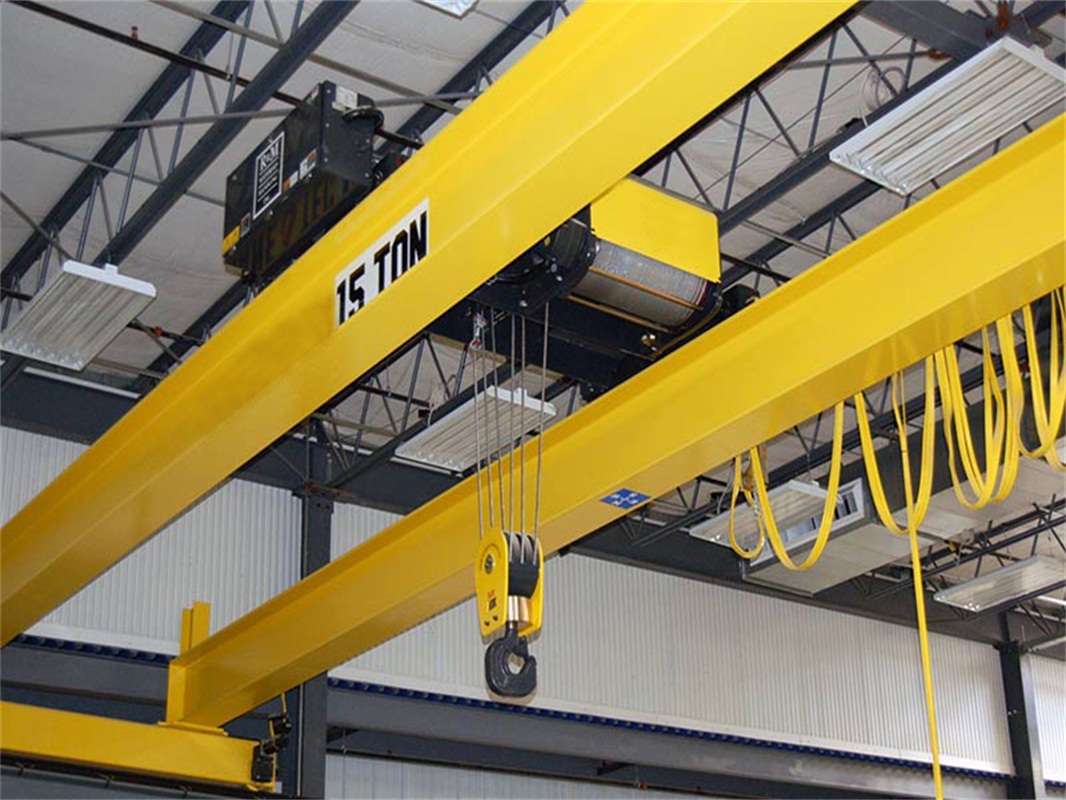

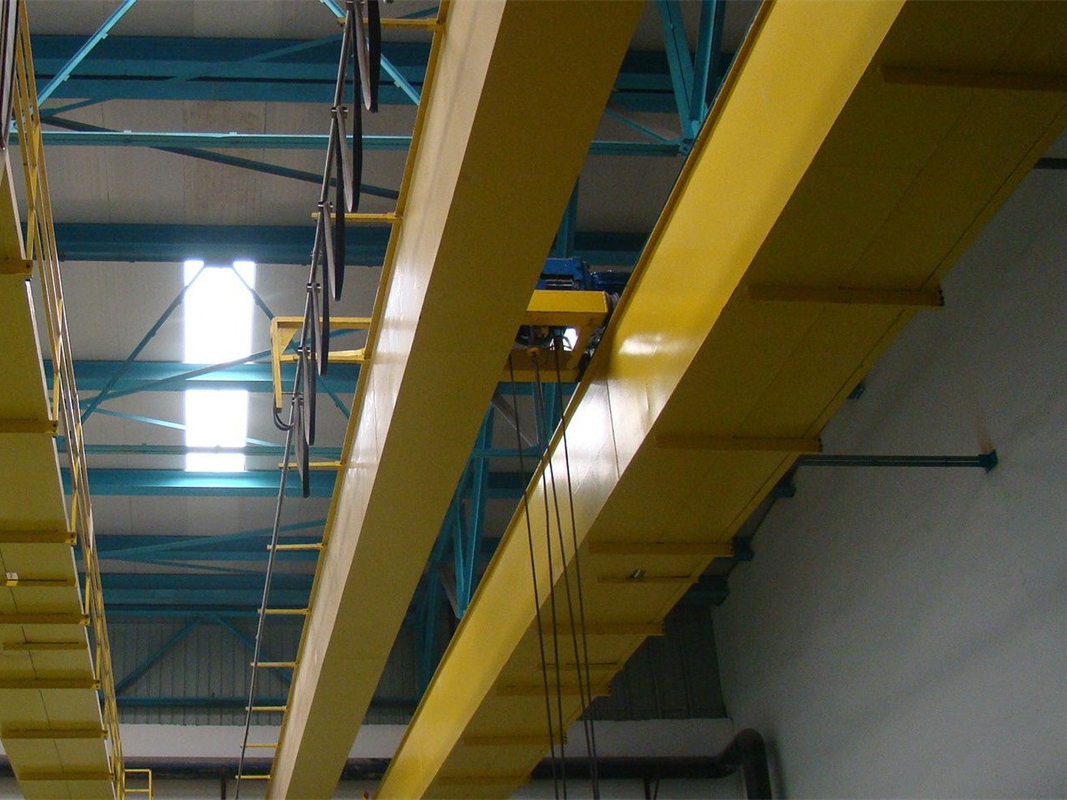

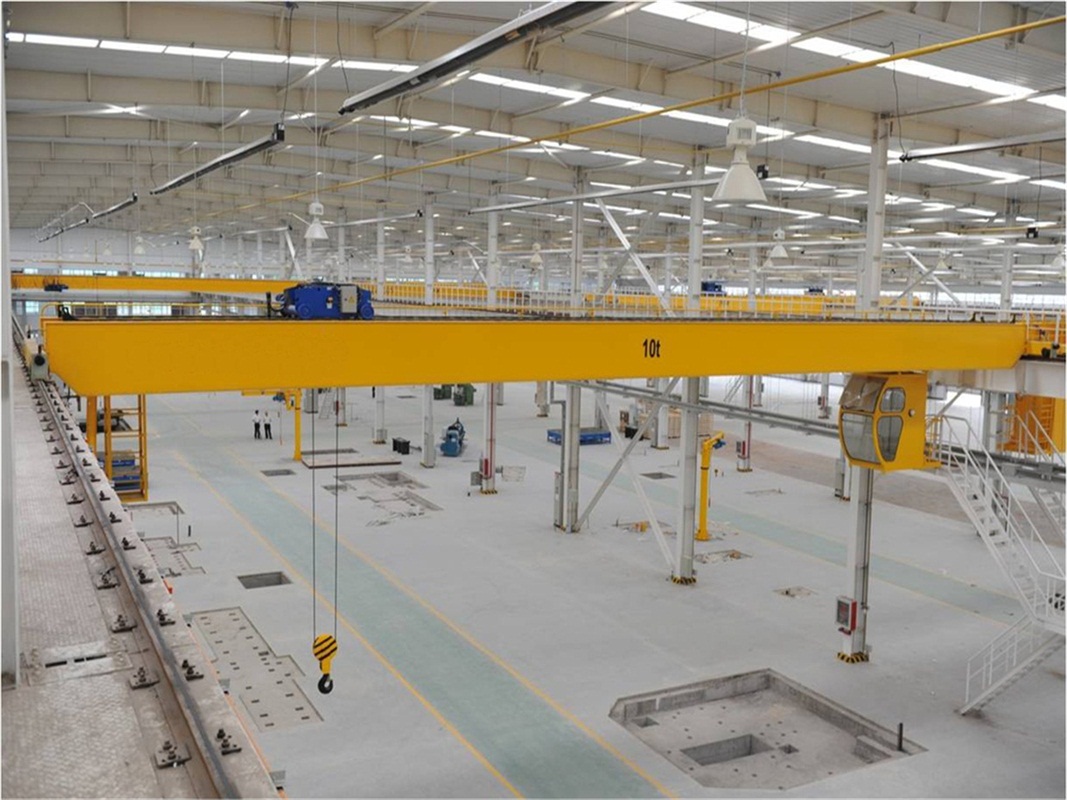

Double Girder Overhead Crane
Double Girder European Overhead crane is based on advanced technology and international standard: FEM (Europe), DIN (Germany), ISO(International), is the renewed product, is an intelligent crane. Its structure is much more reasonable and its assemble is more superior. The limiting size is the lowest between the top of crab and the track of trolley, reduces 20%-30% compared to traditional Double Girder Overhead crane, and can reduce the capital of workshop 20% efficiently. It has hard-tooth reducer, imported wire-rope, trinity drive.
It is equipped with such protecting devices as alarm device to overloading, obliquely hanging, second protecting equipment preventing hook clashing, current phase protection, etc. the electric appliance adjusts speed without contact or spark module, and fulfill converter function, including mini-speed and double speed, which make traveling and lifting very steady.
Double Girder European Overhead crane lifting capacity is from 5t to 500t, span is 10.5~31.5m, work environment is -10 to 40 degree, working duties are A5-A6. Must not use for lifting blazing & melting metal, toxicant, explosion-proof or other dangerous material.
1) capacity :5T-50/10T.
2) span:10.5m-31.5m.
3) working grade:A5, A6
4) Remote or Cabin Control
Double Girder Overhead Crane Feature
* Small dimension, light dead weight, small wheel pressure
* Lifting limiting distance is minimum from hook to floor, lowest headroom, lifting height more higher, increases work efficiency
* New workshops can be designed more smaller, save a amount of money from initial construction investment
* Strong rigidity, light dead weight, low power, outstanding structure
* Applicable to the transfer, assembly, check, repair, load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouses, goods yard and power station.
* Spreader optional, hook, grab bucket, magnet chuck and so on.
* Schneider electrical, ABM/Nord / SEW triple gear motor
* Galvanized high strength wire rope
* Self-adjusted disk brake, hard tooth reducer
Double Girder Overhead Crane Technical Parameter
| Capacity | 0.25-32t |
|---|---|
| Span | 6-40m |
| Lifting height | 3-60m |
| Lifting speed | 0.1-8m/min |
| Cross travelling speed | 2-30m/min |
| Long travelling speed | 2-45m/mim |
| Working class | ISOA3-A5/FEM1AM-FEM2M |
| Power source | Electric |
DataCapacity0.25-32tSpan6-40mLifting height3-60mlifting speed0.1-8m/mincross travelling speed2-30m/minlong travelling speed2-45m/mimWorking classISOA3-A5/FEM1AM-FEM2MPower sourceas your demandsOtherAccording to your specific usage, specific model and design will offer
