Fixed column jib crane design technical parameters
time:Oct 19,2016
Fixed column jib crane design technical parameters

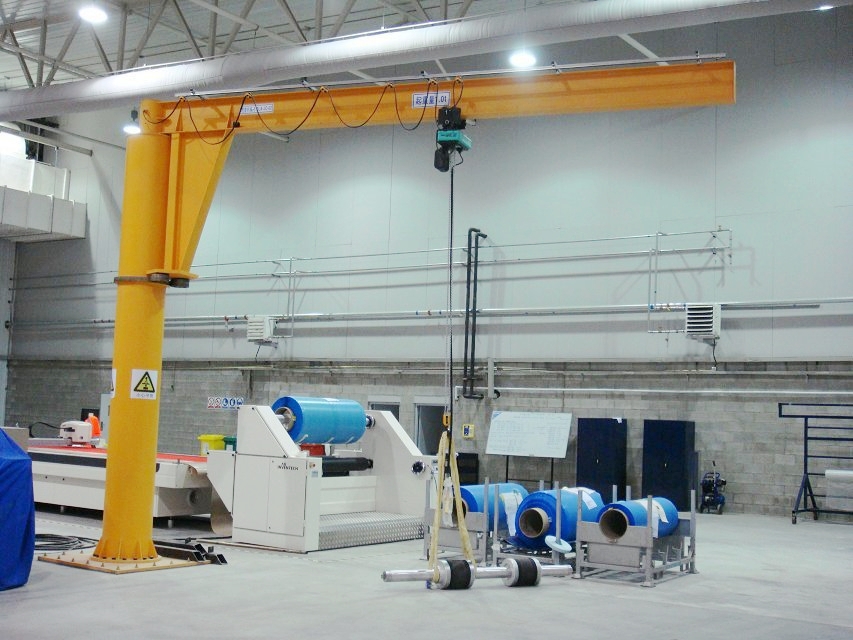

Fixed column jib cranes (also known as column mounted cantilever cranes, column mounted jib cranes, free standing jib cranes, pillar mounted jib cranes, floor mounted jib cranes) are a new generation of lightweight hoisting equipment for modern production. The fixed column jib crane is a new product developed by our company with reference to German equipment, and special designed according to user needs.
The fixed column jib cranes have the advantages of novel and reasonable structure, simplicity, convenient operation and operation, flexible rotation and large working space, and are energy-saving and efficient material lifting equipments. It can be widely used in the production lines of factories, mines, workshops, assembly lines, warehouses, docks, etc.
|
Model |
BZD1 |
BZD2 |
BZD3 |
BZD5 |
BZD6 |
BZD8 |
BZD10 |
|
Lift capacity(t) |
1 |
2 |
3 |
5 |
6 |
8 |
10 |
|
horizontal throw(m) |
5.5-10.5 |
5.5-10.5 |
5.5-10.5 |
5.3-10.3 |
5.3-10.3 |
5.2-10.2 |
5.2-10.2 |
|
Radius of gyration(m) |
7-12 |
7-12 |
7-12 |
7-12 |
5-10 |
5-10 |
5-10 |
|
angle of revolution |
180°/270/°360° |
||||||
|
Lift height(m) |
3-5 |
||||||
|
Lift speed |
8/2,4/1 |
||||||
|
Travel speed |
20 |
||||||
|
Power Supply |
Three-phase A.C. 380V, 50HZ (As your demand) |
||||||
