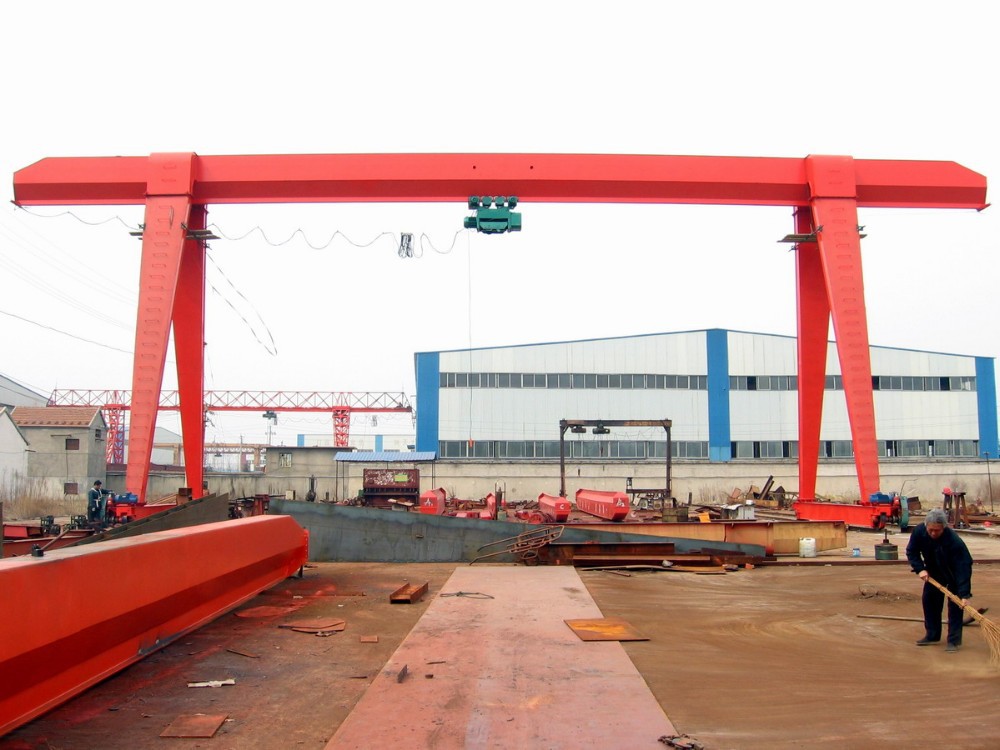

Electric hoist gantry crane configuration
time:Oct 19,2016
The electric hoist is a lifting device that can be installed on bridges cranes and gantry cranes, it is small in size, light in weight and is widely used in workshops, docks and warehouses. In general, the electric hoist gantry crane has a lifting capacity of 0.1t to 30t and a lifting height of 3m to 30m.
The electric hoist gantry crane configuration should be combined with the actual work requirements, for example, an electric hoist gantry crane with a lifting capacity of 5t, a span of 4m, a working level of A5 and a lifting height of 16 meters can be configured as follows:
1. A set of lifting trolley, using metal structural parts and operating mechanism
2. F series reducer type car
3. Frequency conversion motor
4. Disc type lifting brake
5. QJR series lifting gear reducer
6. Frequency conversion electrical control box
