Wire rope electric hoist characteristics
time:Oct 19,2016

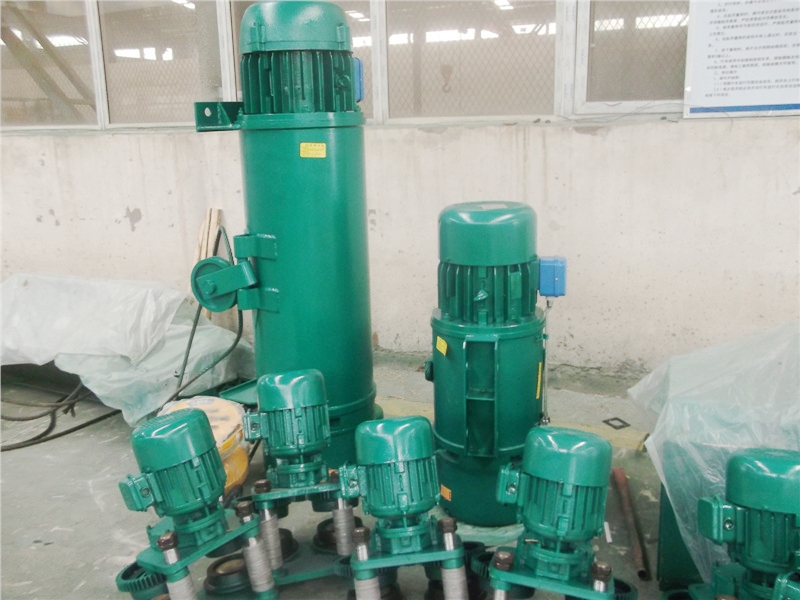

Wire rope electric hoist is a lifting machine, with light dead weight, small size, compact structure, simple operation and easy installation, etc. The main structure includes the reducer, operating mechanism, motor, coupling, and spreader (more For the hook), reel, limit switch, etc., the motor is mostly cone motor, with power, braking force in one. Wire rope electric hoist can be used alone, can also be installed on the electric overhead crane, industrial gantry crane in factories, mines, ports, freight yards and other occasions, can reduce the workload of workers loading and unloading materials, improve work efficiency.
Common wire rope electric hoist parameters:
Common wire rope electric hoist parameters:
* Rated load: 0.25t ~ 32t; 16ton and below adopt cylinder structure, above 16ton is square structure.
* Lifting height: 6m ~ 30m, divided into 6m, 9m, 12m, 18m, 24m, 30m, can also be customized according to workshop and usage.
* Working level: M3
* Lifting speed: 8m / min (when the rated lifting capacity is more than 10t, the lifting speed is 7m / min)
* Operating speed: 20 (30) m / min;
* Working environment temperature: -20 ℃ ~ +40 ℃
* Working System: Intermediate duty JC25% (Heavy duty JC40%)
Wire rope electric hoist generally adopt intermediate duty JC25%, it can meet the most work environment and operate requirements, if using heavy-duty JC40%, indicating that the electric hoist working duty is relatively heavy and more frequent, often working at rated load or high safety requirements.
