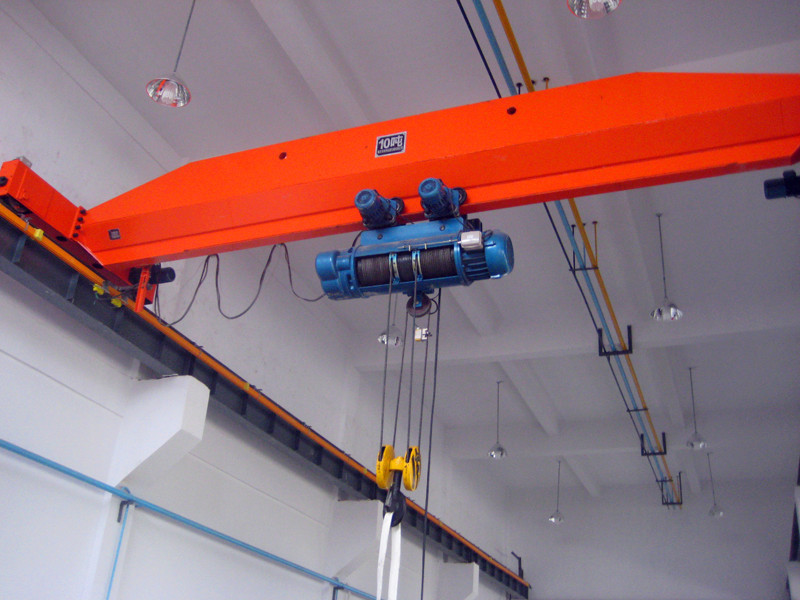

Single Beam Overhead Crane 10 ton
time:Oct 19,2016
The Hoist single beam overhead crane lifting capacity is 1 ton ~ 20 ton, could be used in mechanical processing workshop, metallurgical factory and subsidiary workshop, warehouse, material yard and power plant for transferring, assembly, inspection maintenance, and loading procedures, with ISO, CE and SGS, GOST, International famous certificate.
Motors:
Single beam overhead crane adopt flange mounted motor, totally enclosed, IP54, water-proof, dust-proof, integrated safety brakes, insulation class F, CT and LT motions
Gearbox:
The single beam overhead crane gearboxes are made of carbon alloy steel, accurate hob cut helical/spur-gears and pinions having hardness of 250 to 350 BHN, all gears and pinions running on anti-friction type ball/roller bearings in totally enclosed oil bath giving constant splash lubrication
The helical/spur gear designed for adequate strength and optimum wear resistance for smooth operation and long lifespan
Electrical panel
Modular design, ease to install and maintain, reliable operation, fuseless circuitry, ducted wiring and compact terminals, motor overload protection to prevent overloading.
Wheels
The single beam overhead crane steel wheels on end carriage, hoisting mechanism are produced in special vacuum casting workshop (no sand inclusion technique), more elastic, outer surface hard-wearing, durable.
